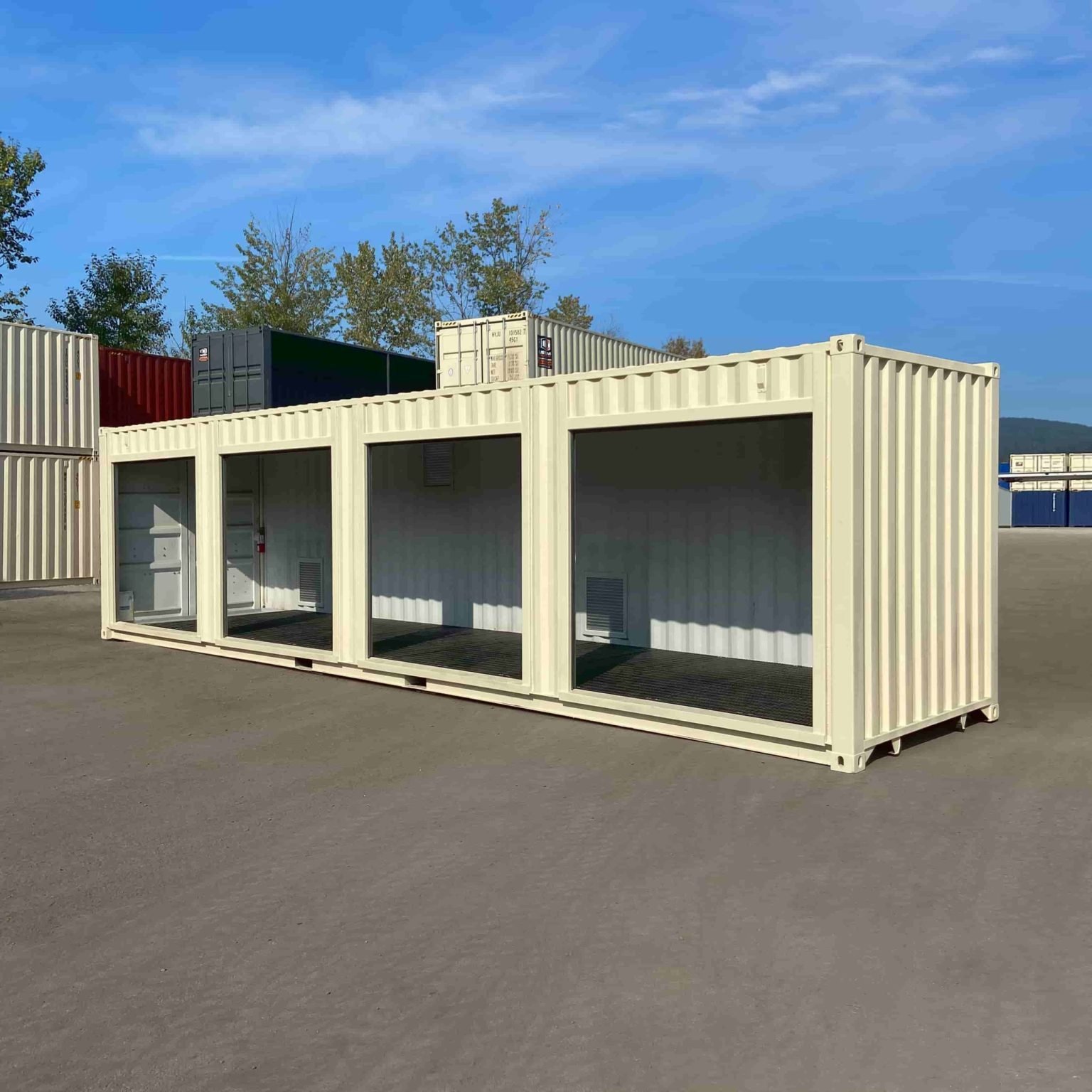

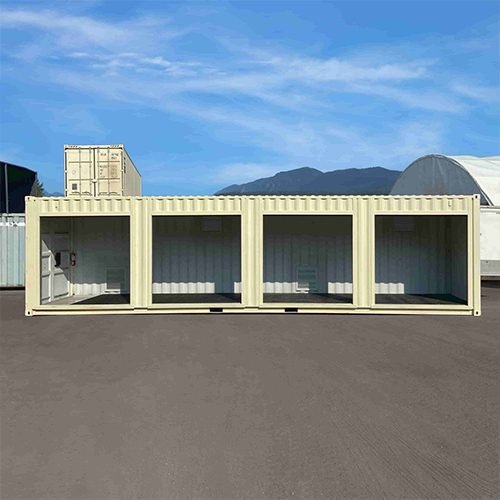

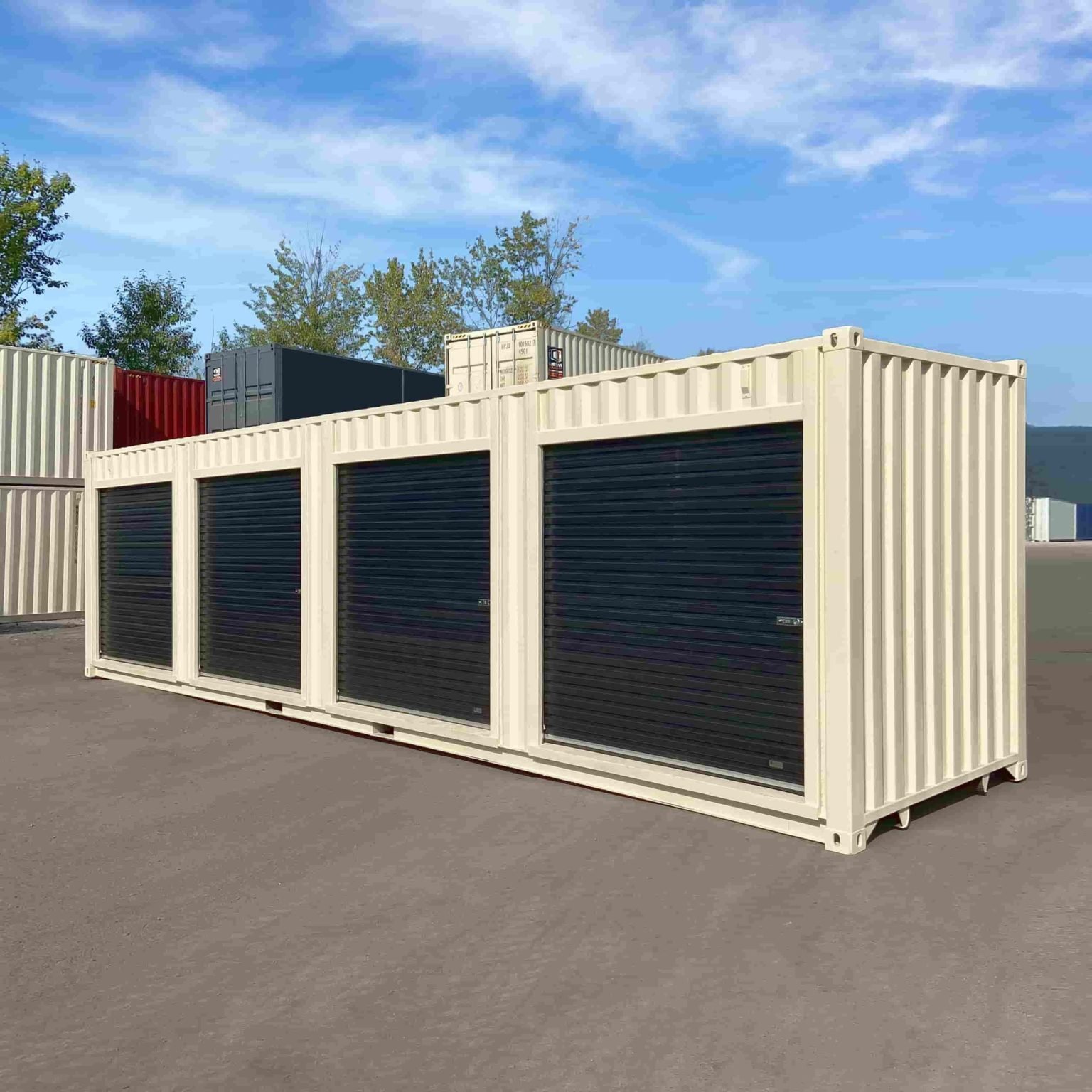

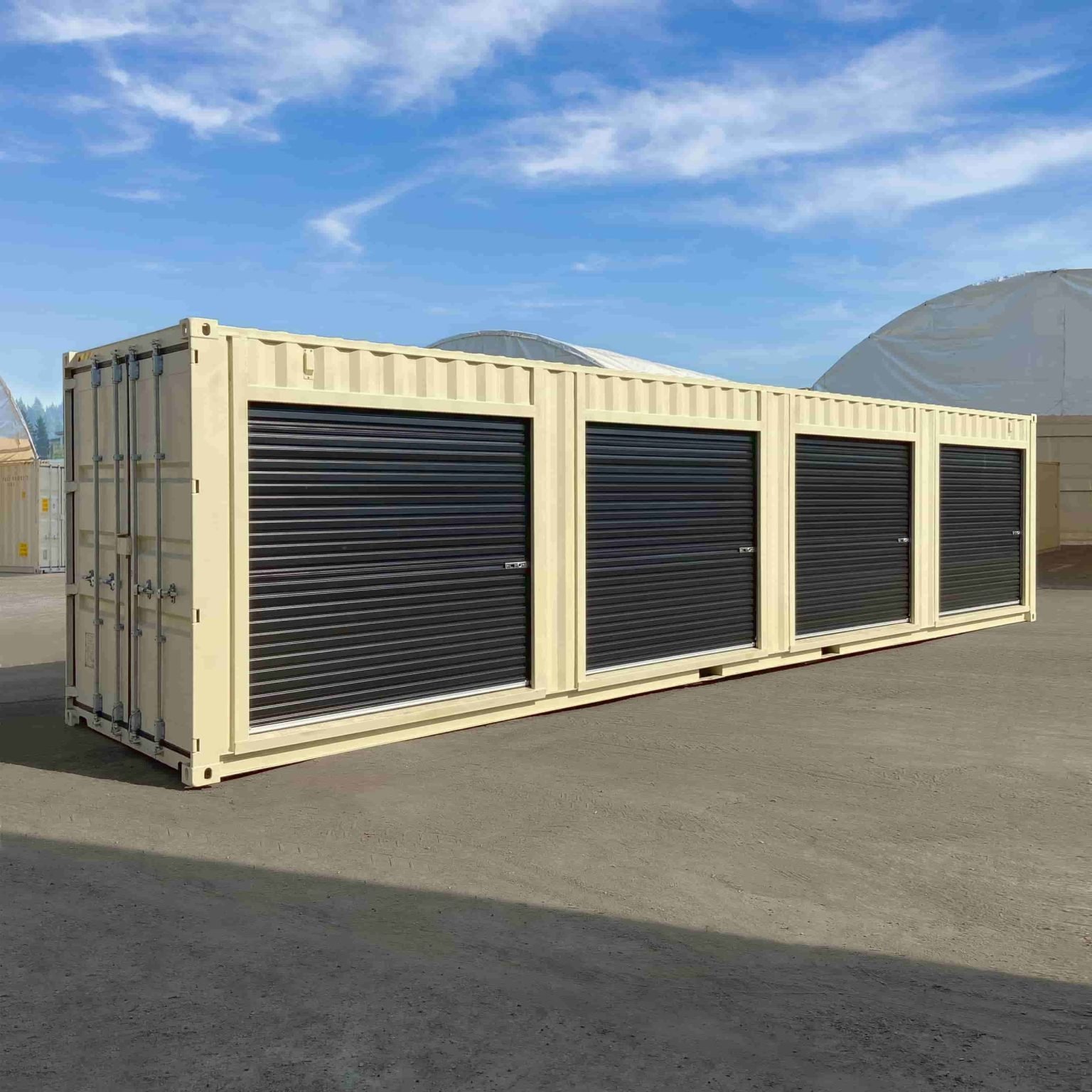

40ft High Cube Container with 4 Roll-Up Side Doors

The 40ft high cube container with four roll-up side doors is a modified shipping container designed for operations requiring multi-point access along the container length . This configuration provides flexible entry points for loading and unloading, making it suitable for warehousing, logistics, distribution, and industrial applications where efficient cargo access is a priority .

• Four roll-up side doors providing access at multiple positions along the container

• High cube configuration offering additional interior height compared to standard containers

• Corten steel construction with weather-resistant properties for outdoor placement

• Marine-grade plywood flooring over steel cross-members

• Manual lock hasps on each door with puck lock compatibility

• Standard end cargo doors for additional access

• Forklift pockets for ease of handling and positioning

• Corner castings for lifting and stacking compatibility

The 40ft high cube container with four roll-up side doors is constructed from Corten steel, a weathering steel grade that forms a stable protective layer when exposed to outdoor conditions . This material provides structural integrity and resistance to atmospheric corrosion, making the container suitable for extended outdoor placement.

The high cube configuration provides additional interior height compared to standard shipping containers, accommodating taller items and increasing overall storage volume . The interior height of approximately 8 ft 8 in (2.65 m) supports storage of larger equipment and allows for racking systems .

The four roll-up doors are typically positioned along one side of the container . Each door measures approximately 7 ft (2.13 m) wide with an opening height of approximately 6 ft 6 in (1.98 m), providing ground-level access without opening the rear cargo doors . The roll-up door mechanisms consist of interlocking steel slats that track along guides and coil into housings above each door opening when raised. This design eliminates the need for swing clearance required by standard cargo doors and allows each door to operate independently.

The floor system utilizes marine-grade plywood panels secured to steel cross-members, providing load-bearing capacity suitable for palletized goods, machinery, and equipment . The floor supports loads up to 16,000 lbs (7,260 kg) .

The container includes corner castings at all eight corners for lifting and stacking compatibility with standard handling equipment . Corner post stacking strength meets ISO standards at 192,000 lbs . Forklift pockets are positioned along the container base, allowing repositioning with standard forklift equipment.

Each roll-up door includes locking hasps compatible with padlocks or puck locks, providing secure access control . Standard end cargo doors with steel locking bars provide additional entry points when required.

• External Length: 40 ft (12.19 m)

• External Width: 8 ft (2.44 m)

• External Height: 9 ft 6 in (2.90 m)

• Internal Length: 39 ft 4 in (11.99 m) approx.

• Internal Width: 7 ft 7 in (2.31 m) approx.

• Internal Height: 8 ft 8 in (2.65 m) approx.

• Approx. Interior Volume: 2,570 ft³ (73 m³)

• Door Configuration: Four side roll-up doors plus end cargo doors

• Roll-Up Door Opening Width: 7 ft (2.13 m) per door

• Roll-Up Door Opening Height: Approx. 6 ft 6 in (1.98 m)

• Floor Material: Marine-grade plywood over steel cross-members

• Floor Load Capacity: 16,000 lbs (7,260 kg)

• Frame Material: Corten steel

• Locking System: Manual lock hasps, puck lock compatible

• Tare Weight: Approx. 4,460 kg (9,830 lbs)

• Max Payload: Approx. 26,020 kg (57,370 lbs)

• Max Gross Weight: 30,480 kg (67,200 lbs)

• Corner Post Stacking Strength: 192,000 lbs

• Forklift Pockets: Included, 4 positions

• Corner Castings: Standard, 8 positions

• Certification: ISO certified, CSC plate included

This container is suited for the following applications:

• Warehouse and distribution operations requiring flexible access

• Multi-tenant storage facilities with designated access points

• Construction sites requiring equipment and material storage

• Fleet operations and tool storage

• Event management and temporary storage

The four-door configuration allows loading and unloading from multiple positions, reducing cargo handling distance and shortening loading and unloading time . This design is particularly suitable for compartmentalized storage or operations where different users require separate access points along the container length.

• 40ft high cube container with four roll-up side doors

• Marine-grade plywood floor

• Standard end cargo doors with locking hardware

• Corner castings (8 total)

• Lock hasps on each roll-up door and end doors

• Forklift pockets (4 positions)

• CSC certification plate
